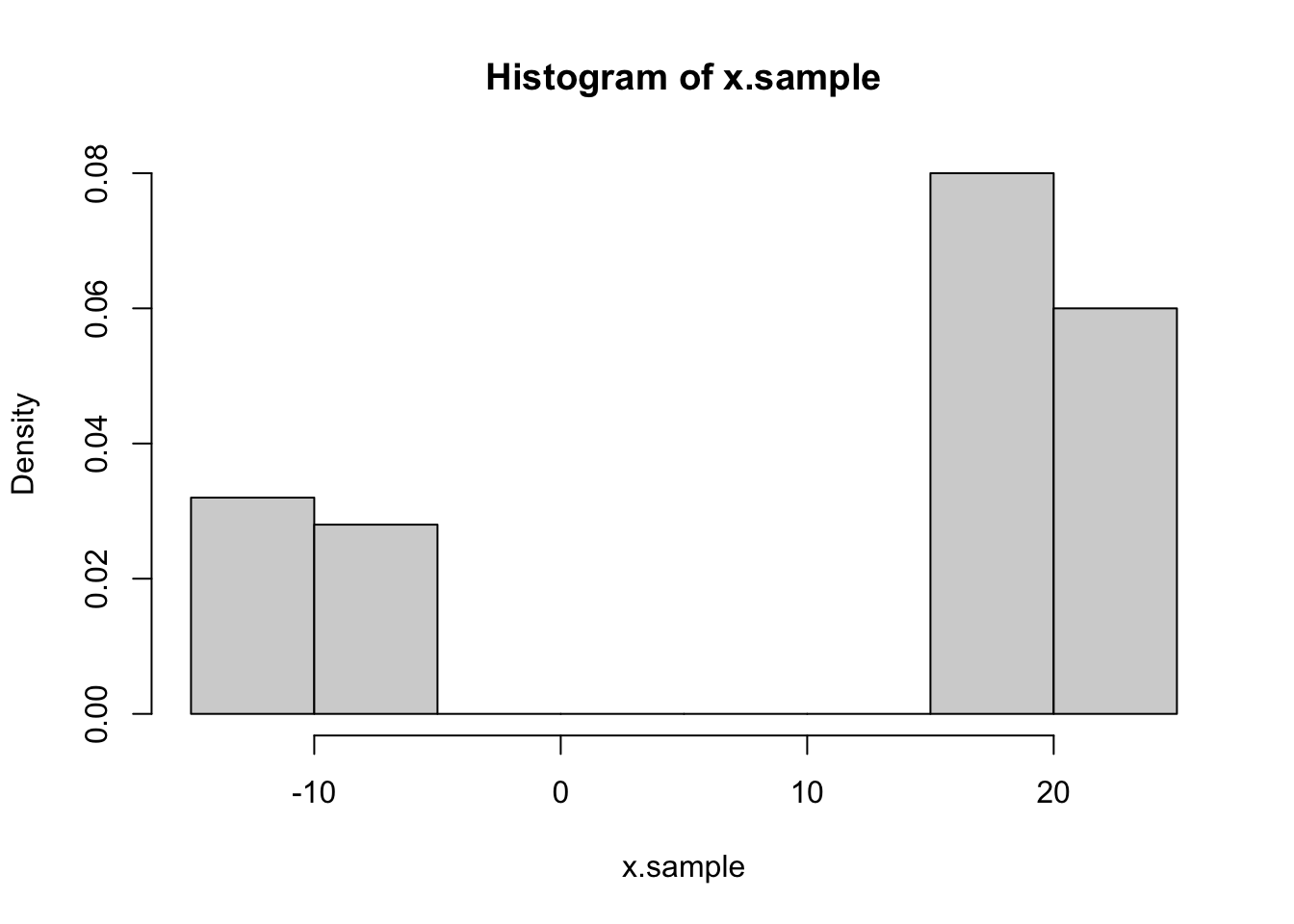

head(x.sample)[1] 19.572951 20.244484 -7.912213 -10.135934 21.031454 20.232970hist(x.sample, freq = F, breaks = 10)
18 Expection - Maximized
EM algorithm is an iterative method to estimate parameter.
Assume you have both unknown parameter and variable to estimate:
- E step: estimate Expection of missing variable
- M step: maximize MLE and estimate missing parameter
Keep iterate between E and M step then reach to the maximum.
18.1 Example: Mixed Normal Distribution
Assume you have a random sample from the follow distribution. Try to estimate: \(p, \mu_1, \mu_2, \sigma_1^2, \sigma_2^2\) \[X \sim p N(\mu_1, \sigma_1^2) + (1-p) N(\mu_2, \sigma_2^2)\]
The question here is, we don’t know the real parameter thus we can’t distinguish which subdistribution the data exactly. Then we assume \(Y_i \sim Bin(p)\), we have the unknown random variables.
18.1.1 Likelihood Function
For each sample:
\[ f(x_i, y_i; p, \mu_1, \mu_2, \sigma_1^2, \sigma_2^2) = [ p \frac{1}{\sqrt{2\pi} \sigma_1} e^{-\frac{(x_i-\mu_1)^2}{2\sigma_1^2}} ]^{y_i}[ (1-p) \frac{1}{\sqrt{2\pi} \sigma_2} e^{-\frac{(x_i-\mu_2)^2}{2\sigma_2^2}} ]^{1-y_i} \]
Then the likelihood function is,
\[ L(X, Y; p, \mu_1, \mu_2, \sigma_1^2, \sigma_2^2) = \prod_{i=1}^{n} [ p \frac{1}{\sqrt{2\pi} \sigma_1} e^{-\frac{(x_i-\mu_1)^2}{2\sigma_1^2}} ]^{y_i}[ (1-p) \frac{1}{\sqrt{2\pi} \sigma_2} e^{-\frac{(x_i-\mu_2)^2}{2\sigma_2^2}} ]^{1-y_i} \]
log-likelihood
\[ l(X, Y; p, \mu_1, \mu_2, \sigma_1^2, \sigma_2^2) = \log {L} = \sum_{i=1}^{n}{ {y_i}[ \log{p} -\frac{1}{2}{(\log{2\pi})}-\frac{1}{2} \log{2\sigma_1^2} -\frac{(x_i-\mu_1)^2}{2\sigma_1^2} ]+{(1-y_i)}[ \log{p} -\frac{1}{2}{(\log{2\pi})}-\frac{1}{2} \log{2\sigma_2^2} -\frac{(x_i-\mu_2)^2}{2\sigma_2^2} ]} \]
18.1.2 E step
\[ E[Y_i] = \frac{p e^{-\frac{(x_i-\mu_1)^2}{2\sigma_1^2}}}{p e^{-\frac{(x_i-\mu_1)^2}{2\sigma_1^2}} + (1-p) e^{-\frac{(x_i-\mu_2)^2}{2\sigma_2^2}}} \]
Then let \(y_i = E[Y_i]\), we define
18.1.3 M step
\[ \frac{\partial l}{\partial p} = \sum_{i=1}^{n} {\frac{y_i}{p} - \frac{1-y_i}{1-p}} = 0 \Rightarrow p = \frac{\sum y_i}{n} \]
\[ \frac{\partial l}{\partial \mu_1} = \sum_{i=1}^{n} {y_i \frac{(x_i-\mu_1)}{\sigma_1^2}} = 0 \Rightarrow \mu_1 = \frac{\sum y_ix_i}{\sum y_i} \]
\[ \frac{\partial l}{\partial \sigma_1} = \sum_{i=1}^{n} {y_i (-\frac{1}{2\sigma_1^2} +\frac{(x_i-\mu_1)}{2\sigma_1^4})} = 0 \Rightarrow \sigma_1^2 = \frac{\sum y_i(x_i-\mu_1)^2}{\sum y_i} \]
18.1.4 Iterative
We can also have
18.1.5 Code
iter.mu1 <- -1
iter.sigma1 <- 1
iter.mu2 <- 15
iter.sigma2 <- 1
iter.p <- 0.5
iter.y <- rep(1, n)
diff <- 1
target <- 1e-10
likelihood.old <- 0
while (diff>target){
g1 <- iter.p * dnorm(x.sample, iter.mu1, iter.sigma1)
g2 <- (1-iter.p) * dnorm(x.sample, iter.mu2, iter.sigma2)
iter.y <- g1/(g1+g2)
iter.p <- sum(iter.y)/n
iter.mu1 <- sum(iter.y * x.sample)/sum(iter.y)
iter.mu2 <- sum((1-iter.y) * x.sample)/sum(1-iter.y)
iter.sigma1 <- sqrt(sum(iter.y * (x.sample - iter.mu1)^2)/sum(iter.y)+ 1e-100)
iter.sigma2 <- sqrt(sum((1-iter.y) * (x.sample - iter.mu2)^2)/sum(1-iter.y)+ 1e-100)
likelihood.new <- sum(
log(iter.y+ 1e-100) + log(iter.p * dnorm(x.sample, iter.mu1, iter.sigma1)+ 1e-100)
)+sum(
log(1-iter.y+ 1e-100) + log((1-iter.p) * dnorm(x.sample, iter.mu2, iter.sigma2)+ 1e-100)
)
diff <- abs(likelihood.new - likelihood.old)
likelihood.old <- likelihood.new
}
# iter.mu1
# iter.sigma1
# iter.mu2
# iter.sigma2
# iter.p
data.frame(
Value = c("Real", "EM"),
p = c(real.p, iter.p),
mu1 = c(real.mu1, iter.mu1),
sigma1 = c(real.sigma1, iter.sigma1),
mu2 = c(real.mu2, iter.mu2),
sigma2 = c(real.sigma2, iter.sigma2)
) Value p mu1 sigma1 mu2 sigma2
1 Real 0.3 -10.00000 1.000000 20.00000 1.000000
2 EM 0.3 -10.07049 1.054076 19.83182 0.913871iter.mu1 <- -1
iter.sigma1 <- 1
iter.mu2 <- 1
iter.sigma2 <- 1
iter.p <- 0.5
iter.y <- rep(1, n)
diff <- 1
target <- 1e-10
likelihood.old <- 0
while (diff > target) {
# --- E step ---
g1 <- iter.p * dnorm(x.sample, iter.mu1, iter.sigma1)
g2 <- (1 - iter.p) * dnorm(x.sample, iter.mu2, iter.sigma2)
iter.y <- g1 / (g1 + g2)
# 修正：处理 iter.y 中的 NA (防止分母为 0)
iter.y[is.na(iter.y)] <- 0.5
# --- M step ---
iter.p <- sum(iter.y) / n
iter.mu1 <- sum(iter.y * x.sample) / sum(iter.y)
iter.mu2 <- sum((1 - iter.y) * x.sample) / sum(1 - iter.y)
# 更新 sigma 并防止其过小
iter.sigma1 <- sqrt(sum(iter.y * (x.sample - iter.mu1)^2) / sum(iter.y) + 1e-9)
iter.sigma2 <- sqrt(sum((1 - iter.y) * (x.sample - iter.mu2)^2) / sum(1 - iter.y) + 1e-9)
# --- 似然函数评估 ---
# 使用观测数据的对数似然：log(p*f1 + (1-p)*f2)
current_densities <- iter.p * dnorm(x.sample, iter.mu1, iter.sigma1) +
(1 - iter.p) * dnorm(x.sample, iter.mu2, iter.sigma2)
likelihood.new <- sum(log(current_densities + 1e-100))
# 检查是否产生了 NA
if(is.na(likelihood.new)) break
diff <- abs(likelihood.new - likelihood.old)
likelihood.old <- likelihood.new
}
data.frame(
Value = c("Real", "EM"),
p = c(real.p, iter.p),
mu1 = c(real.mu1, iter.mu1),
sigma1 = c(real.sigma1, iter.sigma1),
mu2 = c(real.mu2, iter.mu2),
sigma2 = c(real.sigma2, iter.sigma2)
) Value p mu1 sigma1 mu2 sigma2
1 Real 0.3 -10.00000 1.000000 20.00000 1.000000
2 EM 0.3 -10.07049 1.054076 19.83182 0.913871# 1. 准备数据
x <- x.sample
n <- length(x)
# 2. 初始化参数 (初值对 EM 收敛很重要)
pi_hat <- 0.5
mu1 <- -1; mu2 <- 1
sigma1_sq <- 1; sigma2_sq <- 1
# 迭代过程
for(iter in 1:100) {
# --- E-step ---
dens1 <- pi_hat * dnorm(x, mu1, sqrt(sigma1_sq))
dens2 <- (1 - pi_hat) * dnorm(x, mu2, sqrt(sigma2_sq))
gamma1 <- dens1 / (dens1 + dens2)
gamma2 <- 1 - gamma1
# --- M-step ---
n1 <- sum(gamma1)
n2 <- sum(gamma2)
pi_hat <- n1 / n
mu1 <- sum(gamma1 * x) / n1
mu2 <- sum(gamma2 * x) / n2
sigma1_sq <- sum(gamma1 * (x - mu1)^2) / n1
sigma2_sq <- sum(gamma2 * (x - mu2)^2) / n2
}
# 输出结果
cat("Final Parameters:\n pi =", pi_hat, "\n mu1 =", mu1, "mu2 =", mu2,
"\n var1 =", sigma1_sq, "var2 =", sigma2_sq)Final Parameters:
pi = 0.3
mu1 = -10.07049 mu2 = 19.83182
var1 = 1.111077 var2 = 0.8351602data.frame(
Value = c("Real", "EM"),
p = c(real.p, pi_hat),
mu1 = c(real.mu1, mu1),
sigma1 = c(real.sigma1, sqrt(sigma1_sq)),
mu2 = c(real.mu2, mu2),
sigma2 = c(real.sigma2, sqrt(sigma2_sq))
) Value p mu1 sigma1 mu2 sigma2
1 Real 0.3 -10.00000 1.000000 20.00000 1.000000
2 EM 0.3 -10.07049 1.054076 19.83182 0.913871
